Secomea - Local Control and Exclusive Access of PLCs

When considering remote access solutions, customers sometimes have a few concerns about the safety of working on a system remotely. Secomea offers the following features to address the common concerns.

Concern 1: Local site personnel should be able to control when the system is remotely accessible.

Solution: You can tie a key or toggle switch to Digital Input 1 of the SiteManager which only allows remote access with the DI in the OFF state. In this manner, local personnel could disable/enable remote access with the turn off a key/flip of a switch at the local control panel.


Concern 2: When remote access is enabled, can more than one remote technician potentially access the same PLC, controller, etc. at the same time, possibly causing a conflict?

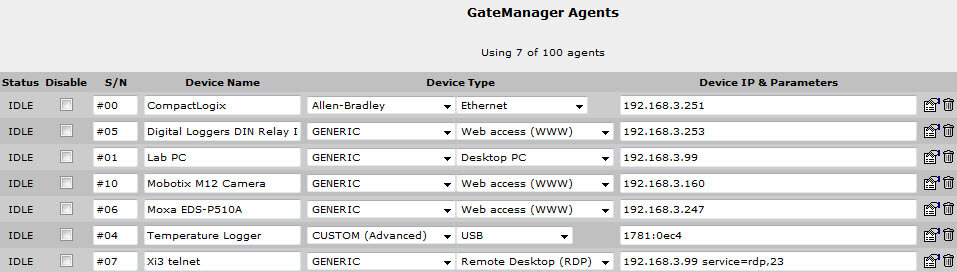

Solution: The SiteManager allows the user to create Agents whose primary function is to "whitelist" the only devices behind the SiteManager that can be reached remotely; however, Agents also offer additional functionality in regards to this particular topic. Here is a list of agents configured on a SiteManager:

Agents 1_2.jpg

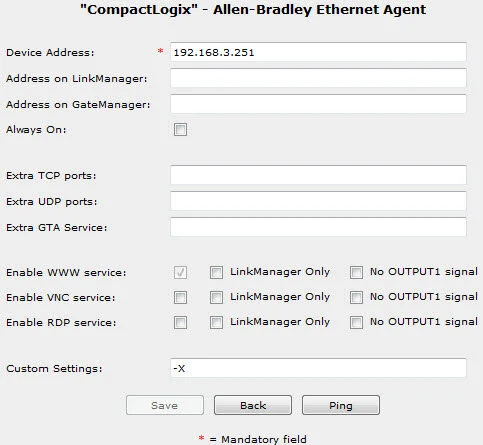

Below we look at the custom parameters for the agent I've named "CompactLogix". Here I have added a Custom Setting of "-X". The "-X" indicates this device should have Exclusive Access: Allow only one LinkManager at a time to access this device; if a second LinkManager tries to connect, the connection will be rejected.

Agents 2_3.jpg

It is significant to note this setting is available on a per agent basis. In this manner you can allow concurrent access for some devices, say an IP camera or a web server, meant to simultaneously service multiple users while setting exclusive access for others, such as PLCs or other critical equipment.
